professional electrical CR305 common rail diesel injector test bench

FOB Reference Price:Get Latest Price
$3,000.00 - $5,000.00 / Set | 1 Set/Sets (Min. Order)
Usage:
Common rail diesel injector test bench
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 10 Negotiable
Customization:
Customized packaging (Min. Order: 1 Sets)
Graphic customization (Min. Order: 1 Sets)

More

Customized logo (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
Beacon
Model Number:
CR305
Power:
standard
TYPE:
Common rail diesel injector test bench
Power supply:
220VAC/380VAC
Phase::
Single/Three phase
emperature control:
Heat/Force-air cooling
Weight:
350kg
Maximum rail pressure:
180-240Mpa
Net dimension (H*W*L):
120*860*1620CM
Packing dimension (H*W*L):
1270*980*1620CM
Fuel tank volume:
19L
Supply Ability
Supply Ability:
150 Piece/Pieces per Month CR305 common rail diesel injector test bench
Packaging & Delivery
Packaging Details
standard export wooden packing
CR305 common rail diesel injector test bench
Port
qingdao or other any port
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 10 To be negotiated
Product Description

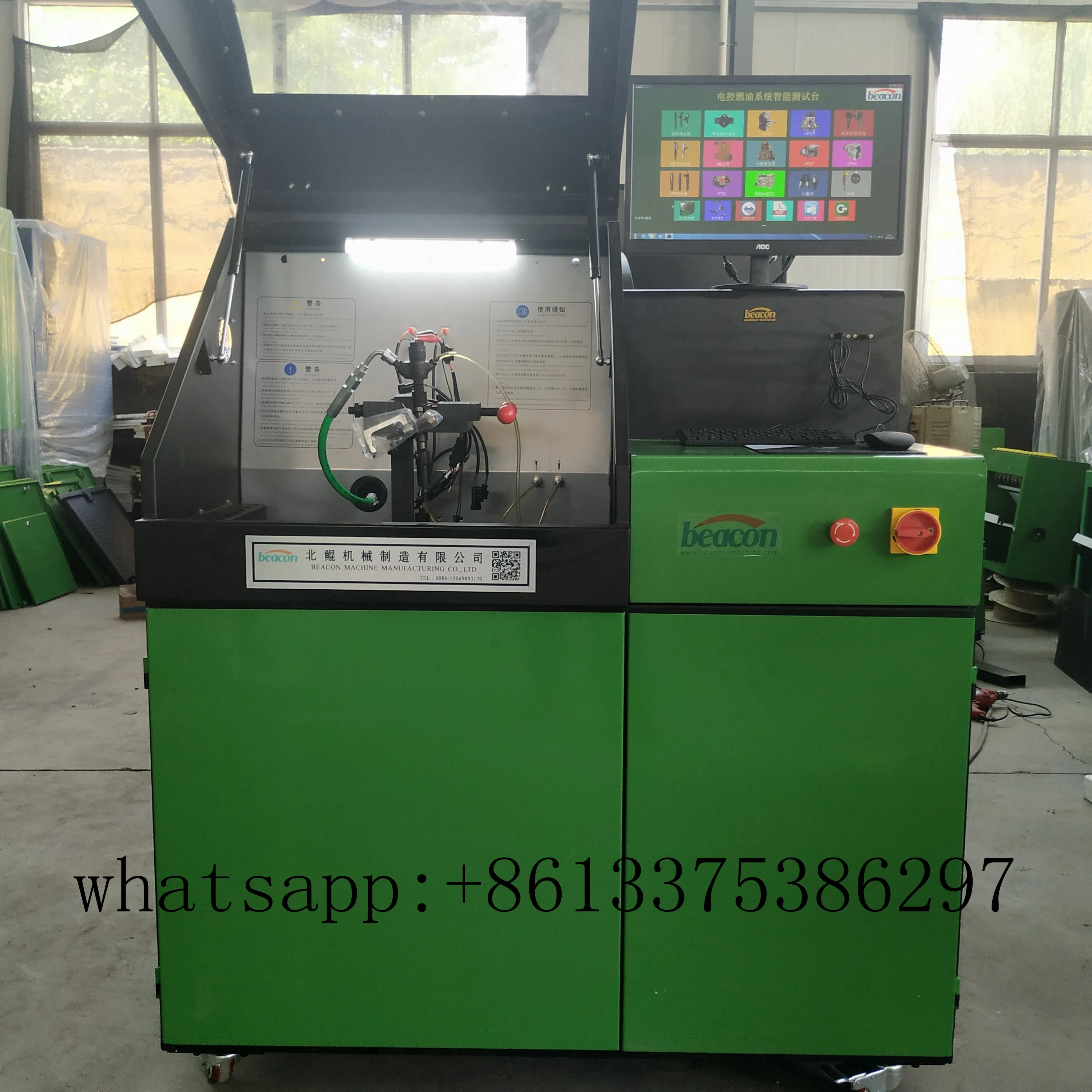

professional electrical CR305 common rail diesel injector test bench

B osch/D enso/D elphi/S iemens/CAT ect.
All solenoid injectors testing
Specifications
CR305 Common rail injector test bench
B OSCH IQA coding
IQA self-definition and injection adjustment according to the real working condition instead of repairing the complete injector
Injector responding time testing
Injector resistance& inductance testing
Injector AHE & lift testing
The rail pressure can reach to 2400bar
Oil temperature not higher than 42 degree under 24 hours non-stop running
High reliability with zero failure under the whole-year normal operation
Very good injection testing accuracy
very good repeated testing consistency
very low operation noise

Technical parameter
Power supply
220VAC/380VAC
Common rail pump Bosch
CP3.3
Phase:
Single/Three phase
Control circult voltage
DC24V/DC12V
Frequency
50HZ/60HZ
ECU internal pressure
0-200VDC(Max)
Electric current
30A(Max)
Fuel tank volume
19L
Motor power
5.5Kw
Noise level
<85dB
Temperature control
Heat/Force-air cooling
Weight
350kg
Temperature Setting
40°C
Net dimension (H*W*L)
120*860*1620CM
Ambient Temperature
<35 °C
Packing dimension (H*W*L)
1270*980*1620CM
Maximum rail pressure
180-240Mpa

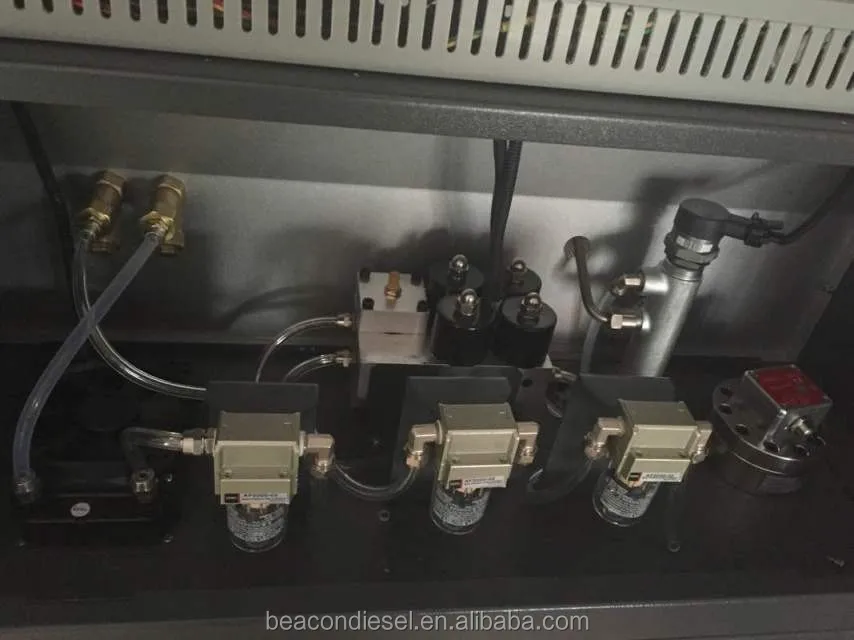

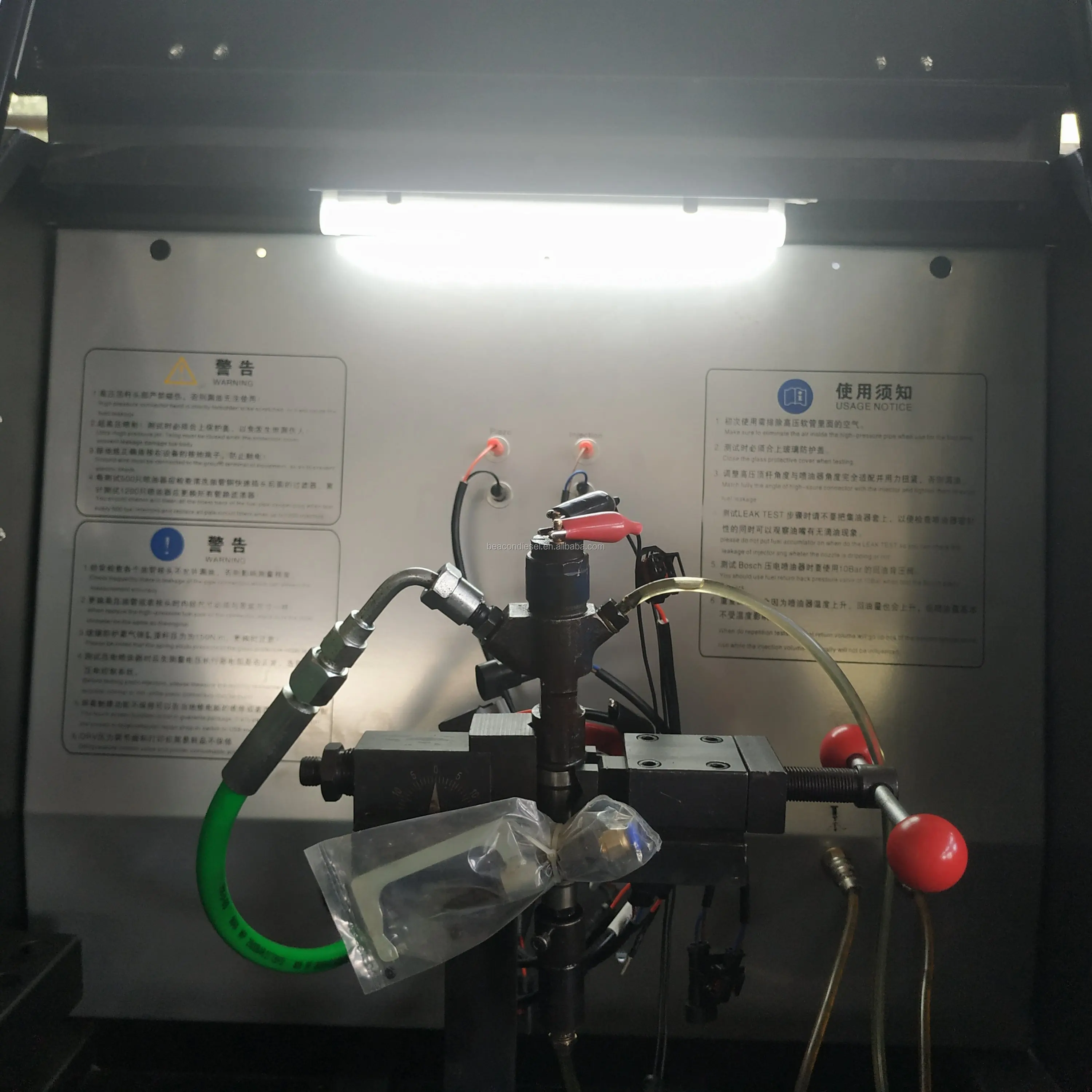

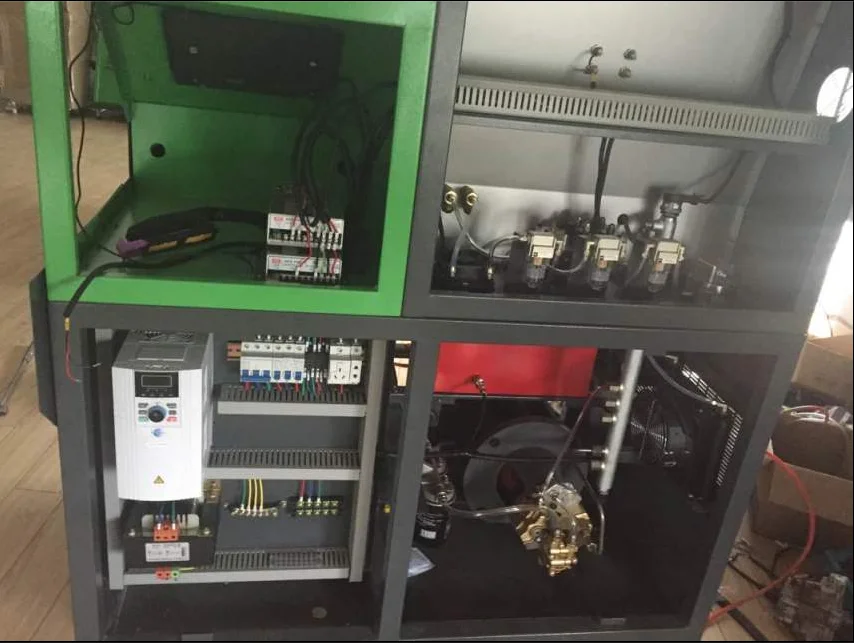

Detailed Images
Related Products

Pls point the machine model number , you will see more details as below :

Packing & Delivery
Our Company

     SHANDONG BEACON MACHINE MANUFACTURING CO.,LTD is the leading manufacturer specializing in producing the Diesel Fuel Injection System Tester in China,is avaiable for Traditional diesel fuel injection pump test bench,PT-CUMMIN pump and injectors Test stand,EDC(Electronic Diesel Controler ),CR(Common Rail pump Teser),
CRI(Common Rail Injectors Tester),Nozzle Tester,and many spares parts of Pumps.
The company's research and developmant capabilities are rich and the test measure is complete,and rewards the ISO9001-2000 certificate,CE certificate.
The company's product sale newwork has spread all over the world.The after-sales service of product has a system of its own,which can provide the best service for users timely.The company's aim is "honest and trustworthy operation and brazing new trails in science and technology"

FAQ
Q: How can i get this product?
A: We can do the delivery by sea shipping to your nearest port,or to your specific address.
Also we can do the air transport to directly your nearest air port or your specific address.
Q:How can i pay,what kind of payment will be accept?
A:We support TT payment,West Union,also paypal and Trade assurance.
Q:Do you have common rail tools or spare parts?
A:Yes,for sure,we have the common rail tools and spare parts also with best quality and most competitive price.
Q:What's the warranty?

A:One year and offer technical support all life.

Contact with us

Looking forward to receive your enquiry
