Auto repair RYQ-3 turbo balancing machine

FOB Reference Price:Get Latest Price
$3,000.00 - $4,300.00 / Set | 1 Set/Sets (Min. Order)
Usage:
Balancing Machine
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
Beacon
Model Number:
RYQ-3
Power:
Electronic
Product name:
turbo balancing machine
Power supply:
220V/380V
Standard:
ISO
Certificate:
ISO CE
Color:
Customer Required
Weight:
110KG
Material:
Steel Material
Warranty:
12 Months
Product Keywords:
balancing machine for turbocharger
Package:
Plywood Case
Supply Ability
Supply Ability:
100 Set/Sets per Month turbo balancing machine
Packaging & Delivery
Packaging Details
standard export package
turbo balancing machine
Port
Qingdao Sea Port
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 7 To be negotiated
Product Description

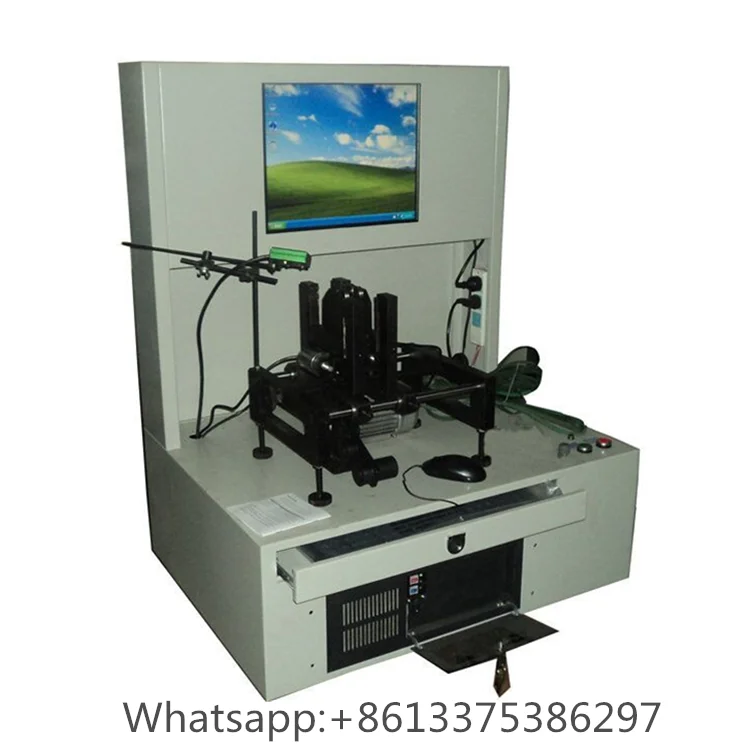

                                              RYQ-3  turbo shaft balancing machine

Introduce:
High measuring accuracy and efficiency
Safe and simple handling
Infinitely variable DC drive
Large weight range
Ergonomic working height
Horizontal balancing machine, soft-bearing, belt drive,
Balancing mechanical parts (can put on a table) Measurin
system balancing software computer display.

Optional function

1. Balance Angle automatic tracking function

2.Parking automatic positioning function

3.Vector Angle function decomposition

Characteristics: this type of balance machine is soft supporting horizontal dynamic balance machine, with roller bearing, the circle take drag, inverter speed regulation, by industrial control computer for data processing, color screen real-time display don't balance phase Angle and value, realtime speed, in automotive turbochargers for the special equipment. Have high efficiency, precision accurate, show intuitional, reliable quality, easy maintenance, the characteristics of software with ordinary workpiece calibration function, overcoming the other hard supporting balance machine measurement system to users to calibration equipment of the defect, and a variety of measurement method and function to choose, can realize the input parameters, preview, the experiment, the results storage, print, operating all adopt the localization menu structure, the man-machine dialogue, automatic hints

Device type
RYQ-3A
Mass scope of workpiece( kg)
0.1-3
Biggest diameter workpiece mm
350
Two span of supports( mm)
30-450
With a diameter circle in drag(mm)
:≤150
Trunnion support( mm)
4-17
Balancing speed r/min
Variable frequency speed regulation
Min achievable residual unbalance amount
:≥90%
Motor power
0.09KW
mode of speed regulation
micro-motor
Transmission model
Circle with

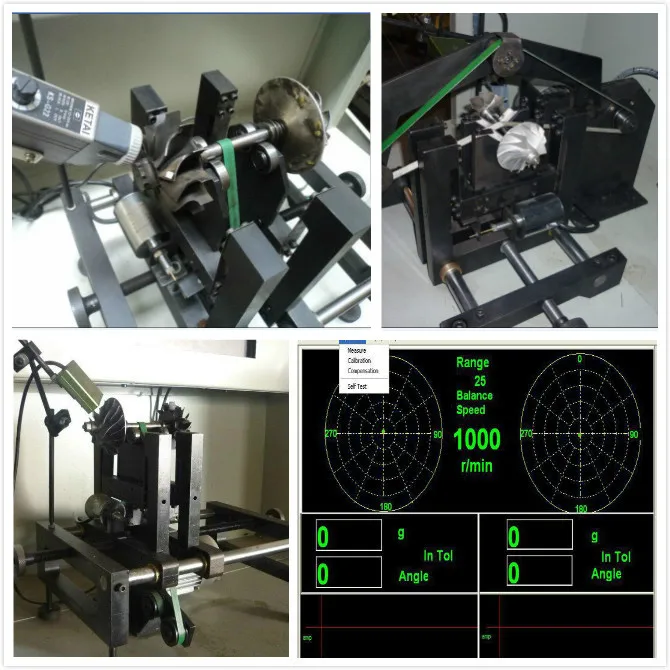

Detailed Images

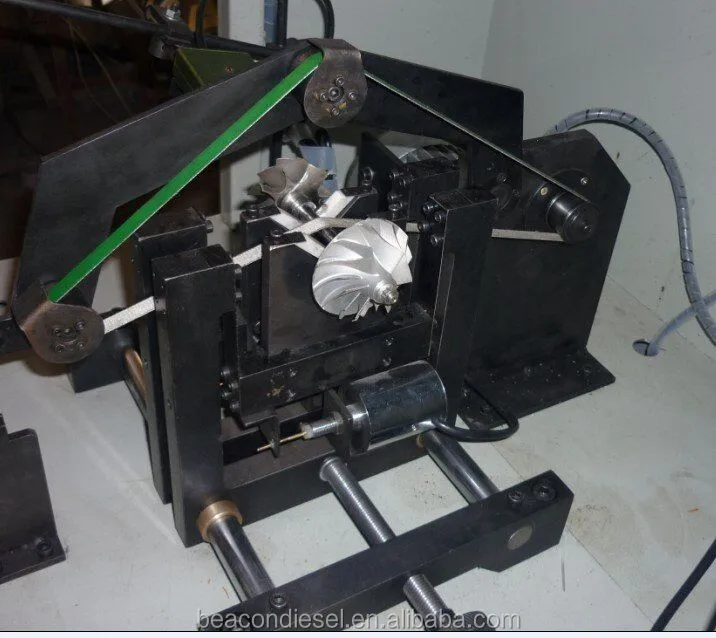

Rotor

Packing & Delivery
Our Company

SHANDONG BEACON MACHINE MANUFACTURING CO.,LTD is the leading manufacturer specializing in producing the Diesel Fuel Injection System Tester in China,is avaiable for Traditional diesel fuel injection pump test bench,PT-CUMMIN pump and injectors Test stand,EDC(Electronic Diesel Controler ),CR(Common Rail pump Teser),CRI(Common Rail Injectors Tester),Nozzle Tester,and many spares parts of Pumps.
The company's research and developmant capabilities are rich and the test measure is complete,and rewards the ISO9001-2000 certificate,CE certificate.
The company's product sale newwork has spread all over the world.The after-sales service of product has a system of its own,which can provide the best service for users timely.The company's aim is "honest and trustworthy operation and brazing new trails in science and technology"

FAQ

Q: How can i get this product?
A: We can do the delivery by sea shipping to your nearest port,or to your specific address.
Also we can do the air transport to directly your nearest air port or your specific address.
Q:How can i pay,what kind of payment will be accept?
A:We support TT payment,West Union,also paypal and Trade assurance.
Q:Do you have common rail tools or spare parts?
A:Yes,for sure,we have the common rail tools and spare parts also with best quality and most competitive price.
Q:What's the warranty?
A:One year and offer technical support all life.

Welcome your inquiry
