auto electrical CRS3000A common rail fuel injector test equipment

FOB Reference Price:Get Latest Price
$2,500.00 - $4,500.00 / Set | 1 Set/Sets (Min. Order)
Usage:
Auto Testing Machine
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 10 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
Beacon
Model Number:
CRS3000A
Power:
standard
TYPE:
common rail fuel injector test equipment
Color:
Customized
power voltage::
380V/50hz/3phase or 220V/60hz/3phase
Warranty period:
1 year for free and offer techancial support all life
. Pulse width:
0.1~20ms
Continuous injection times:
0-1000
Fuel temperature:
40±2℃
Rail high pressure:
0-1600 bar
Test oil filtered precision:
5μ
Rotation speed:
0~3000 RPM
Supply Ability
Supply Ability:
150 Piece/Pieces per Month common rail fuel injector test equipment
Packaging & Delivery
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 10 To be negotiated
Product Description

auto electrical CRS3000A common rail fuel injector test equipment

CRS3000A COMMON RAIL TEST BENCH is mainly test for common rail injector. Also it is continuous fuel delivery analysis computerised measuring system for conventional and new diesel injection systems. The electronic fuel delivery measuring system is compulsory for modern diesel injection system testing.It guarantees a high level of reproductivity of the measured value
CRS3000A COMMON RAIL TEST BENCH is the professional test bench which is used for testing common rail system, can finish the high-pressure common rail system functional testing. BCS300 with inverter working more well.
Function
1.Test injector brands: SIEMENS, DELPHI, DENSO.
2. Test 1 piece of injector.
3. Test the pre-injection of common rail injector.
4. Test the max. oil quantity of common rail injector.
5. Test the cranking oil quantity of common rail injector.
6. Test the back flow oil quantity of common rail injector.
7.Test the average oil quantity of common rail injector.
8. Test the seal performance of common rail injector.
9. Data can be searched and saved.
Technical parameter
1. Pulse width
0.1~20ms
2. Continuous injection times
0-1000
3. Fuel temperature
40±2℃
4. Rail high pressure
0~1600 bar
5. Test oil filtered precision
5μ
6. Input power
380V/50hz/3phase or 220V/60hz/3phase
7. Rotation speed
0~3000 RPM

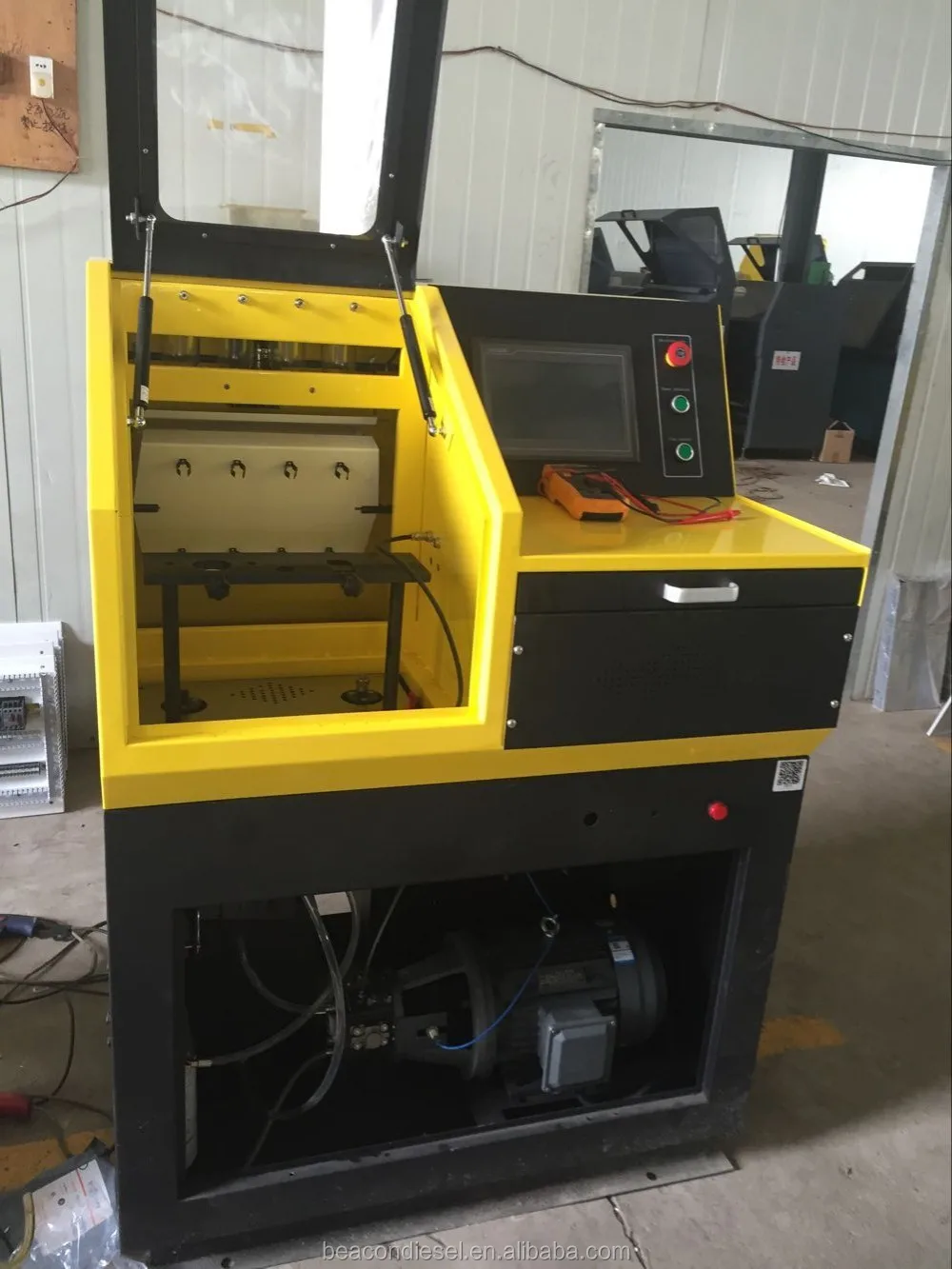

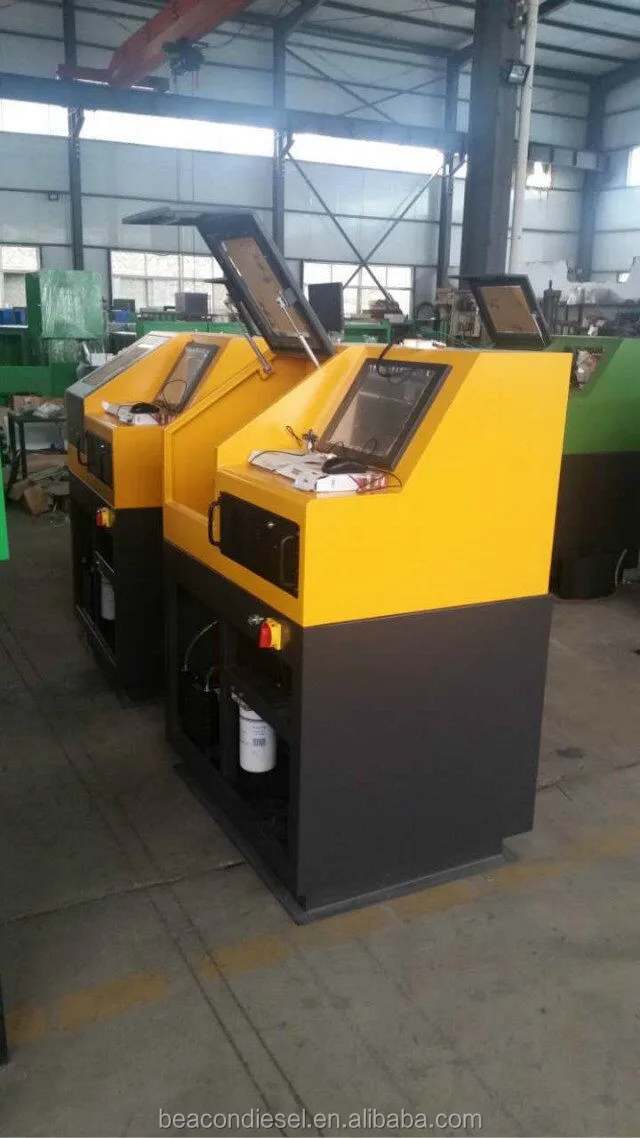

Detailed Images
Our customers
Packing & Delivery
Our Company

     SHANDONG BEACON MACHINE MANUFACTURING CO.,LTD is the leading manufacturer specializing in producing the Diesel Fuel Injection System Tester in China,is avaiable for Traditional diesel fuel injection pump test bench,PT-CUMMIN pump and injectors Test stand,EDC(Electronic Diesel Controler ),CR(Common Rail pump Teser),
CRI(Common Rail Injectors Tester),Nozzle Tester,and many spares parts of Pumps.
The company's research and developmant capabilities are rich and the test measure is complete,and rewards the ISO9001-2000 certificate,CE certificate.
The company's product sale newwork has spread all over the world.The after-sales service of product has a system of its own,which can provide the best service for users timely.The company's aim is "honest and trustworthy operation and brazing new trails in science and technology"

FAQ
Q: How can i get this product?
A: We can do the delivery by sea shipping to your nearest port,or to your specific address.
Also we can do the air transport to directly your nearest air port or your specific address.
Q:How can i pay,what kind of payment will be accept?
A:We support TT payment,West Union,also paypal and Trade assurance.
Q:Do you have common rail tools or spare parts?
A:Yes,for sure,we have the common rail tools and spare parts also with best quality and most competitive price.
Q:What's the warranty?

A:One year and offer technical support all life.
