crs708 common rail diesel fuel injection pump test bench

FOB Reference Price:Get Latest Price
$3,900.00 - $5,000.00 / Set | 1 Set/Sets (Min. Order)
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 7 Negotiable
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)


Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Quick Details
Engine Analyzer
7.5,11,15,18.5,22kw, standard
Applicable Models:
all kinds of cars
Place of Origin:
Shandong, China
Brand Name:
Model Number:
1 Years
common rail injector pump test bench
Steel Probe
Auto Testing Machine
Injector opening frequency Control:
0-1000HZ Control
Supply Ability
Supply Ability:
150 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
standard export wooden packing
qingdao or other any port
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 7 To be negotiated
Product Description

CRS708 common rail diesel fuel injection pump test bench

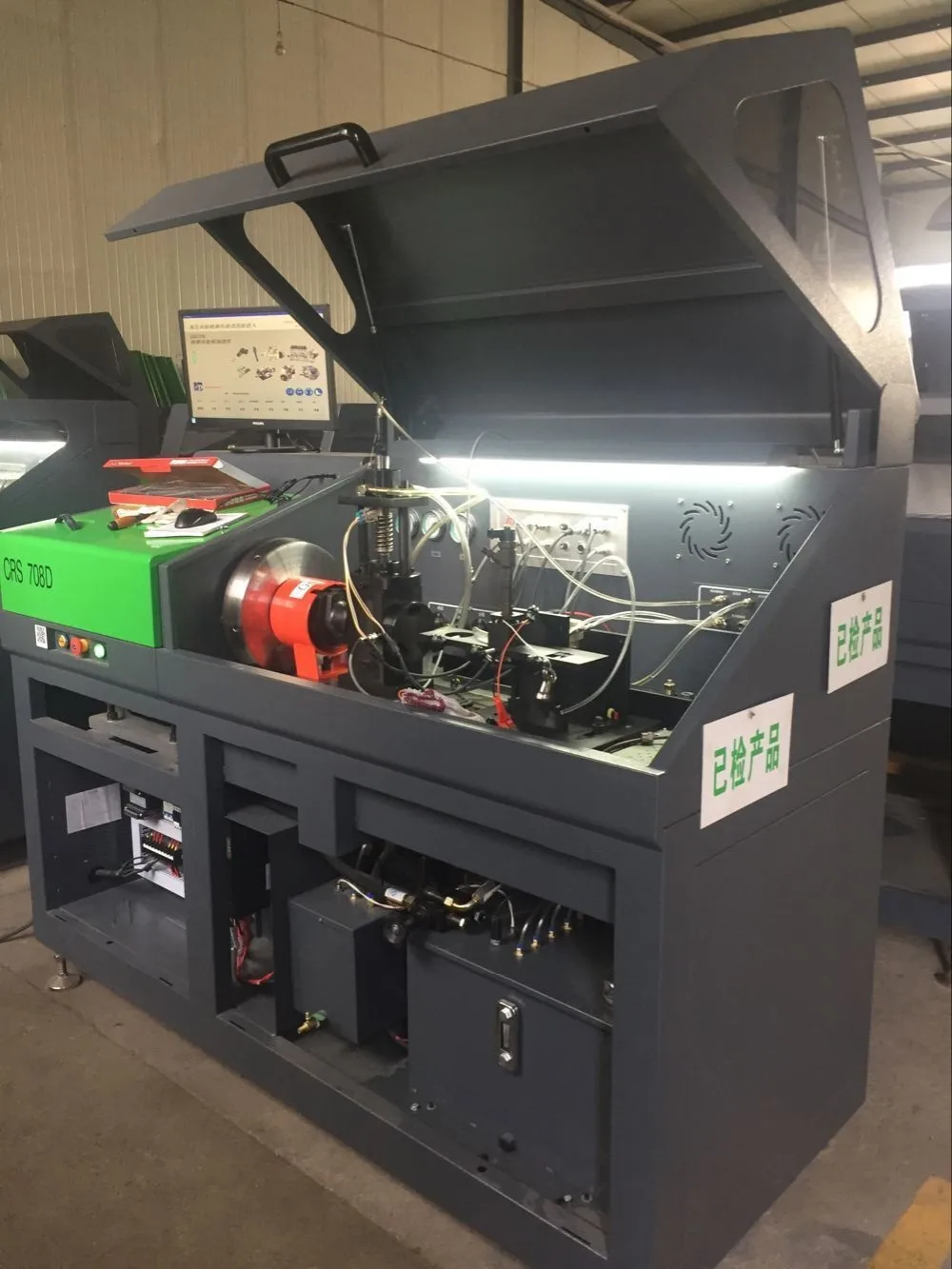

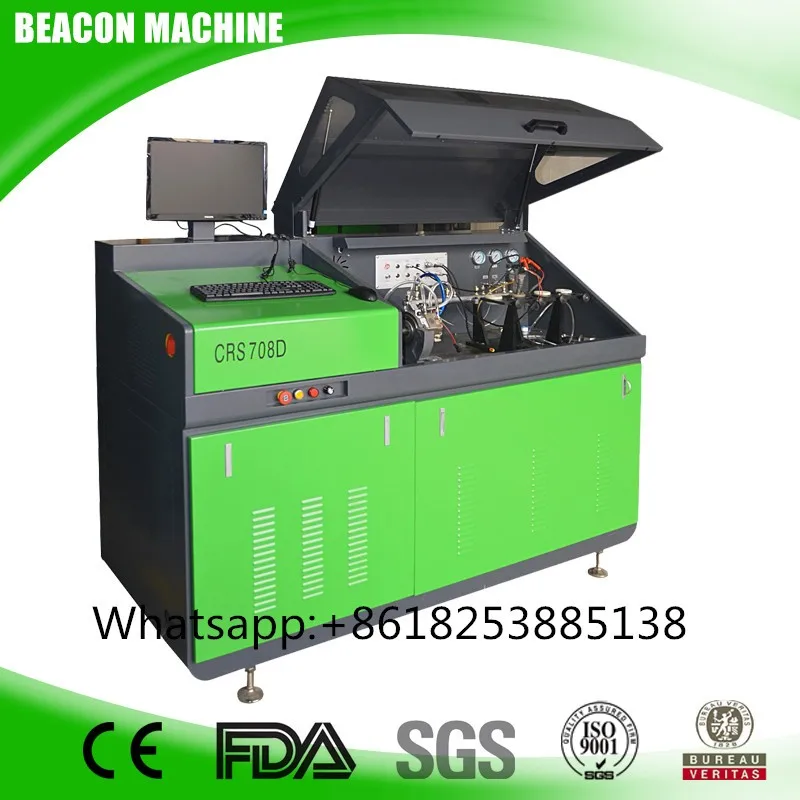

Here is the CRS-708  appearance photo:


 1.Industrial computer control ,WINDOWS OS ,19inch LCD screen display

2.Equipped with original imported high - precision flow sensor and automatic turning over measuring cup to do the testing, these two systems can be standby equipment for each other, also ensure the accuracy and reliability of testing.
3. Industrial PC real-time control and display, WINDOWS OS.
4. Oil quantity sensor test oil quanyity, 19 inch LCD screen display
5. Adopted original BOSCH common rail pump to provide 0~1600 bar rail pressure.
6. Rail pressure can be tested in real time, closed-loop control, Stable pressure, overvoltage protection
7. Adjustable pulse width and frequency of injector's driving signal
8. Injection times can be set free
9. Preset about 500kinds of injector data, easy to search and compare
10. Short circuit protection
11. Adopted super frequency converter to control rotation speed and insure the testing accuracy
12. Wide operation space, protective plexiglass cover to make sure your safe

1. crs708 common rail electrical diesel fuel injection pump test bench,instrument,equipment This system support lots of injector brand, such as BOSCH, DENSO, DELPHI, SIMENS and so on
2. Check the sealing of CRI (common rail injector)
3. Test oil quantity of CRI during pre-infection period
4. Test oil quantity of CRI under full load
5. Test oil quantity of CRI under idle speed
6. Test oil quantity of CRI under correction working condition
7. Test oil-returning quantity of CRI
8. Check the uniformity of CRI
9. Can test all kinds of CRI pumps
10. Provide open database, you can upgrade, modify the data.
11. Testing finish , report formed, you can save or print it.

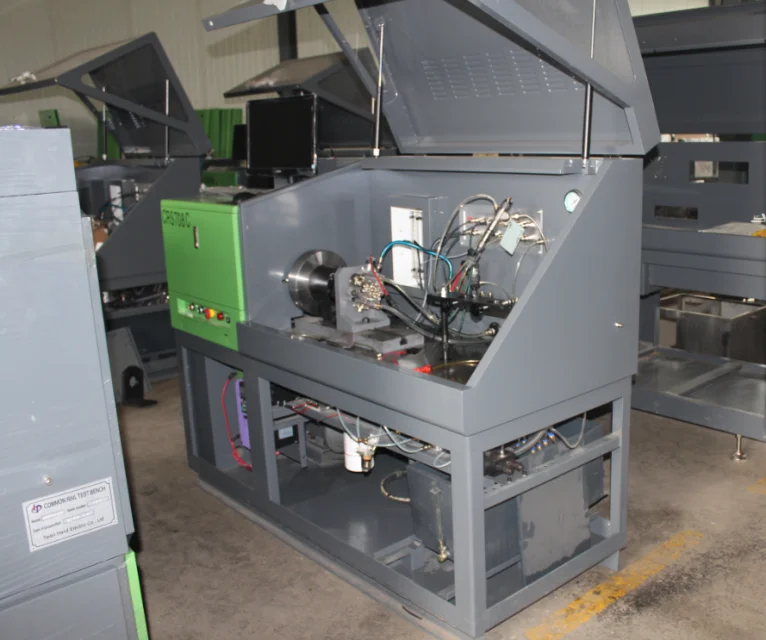

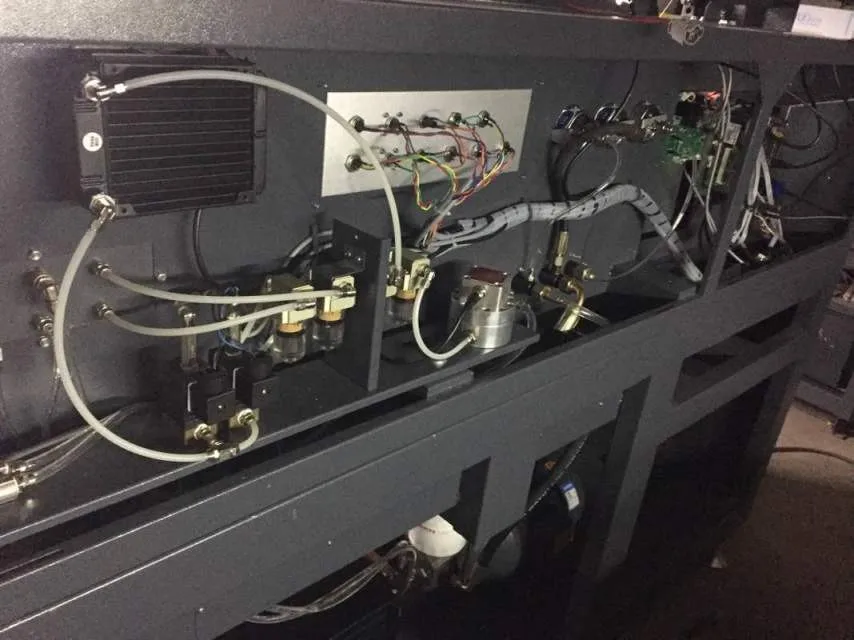

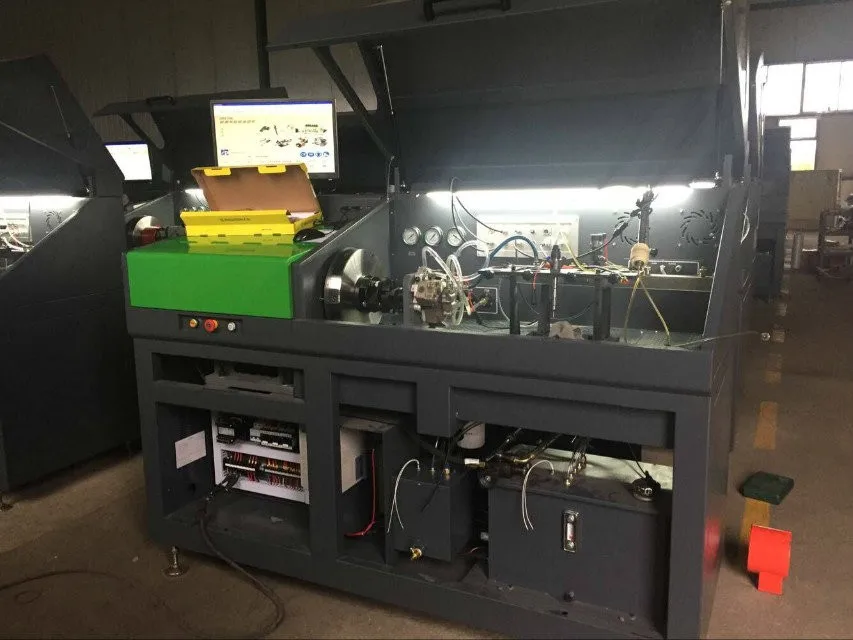

Detailed Images
Packing & Delivery
Our Company

SHANDONG BEACON MACHINE MANUFACTURING CO.,LTD is the leading manufacturer specializing in producing the Diesel Fuel Injection System Tester in China,is avaiable for Traditional diesel fuel injection pump test bench,PT-CUMMIN pump and injectors Test stand,EDC(Electronic Diesel Controler ),CR(Common Rail pump Teser),
CRI(Common Rail Injectors Tester),Nozzle Tester,and many spares parts of Pumps.
The company's research and developmant capabilities are rich and the test measure is complete,and rewards the ISO9001-2000 certificate,CE certificate.
The company's product sale newwork has spread all over the world.The after-sales service of product has a system of its own,which can provide the best service for users timely.The company's aim is "honest and trustworthy operation and brazing new trails in science and technology"
