High quality BC3000 test bench with imported flow sensor

FOB Reference Price:Get Latest Price
$2,900.00 - $3,800.00 / Set | 1 Set/Sets (Min. Order)
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 10 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Type:
Engine Analyzer
Voltage:
380v/220v
Power:
standard
Certification:
CE &ISO
Applicable Models:
all kinds of cars
Place of Origin:
Shandong, China
Brand Name:
BEACON
Model Number:
BC3000
Warranty:
1 Years
TYPE:
injector tester common rail
quality:
High quality
Color:
on your request
certificate:
CE &ISO
RPM:
0-4000
Function:
test normal injector and pump
option function:
the advance angle of advance device
Capability with pump type:
All in- line and rotary pump
power:
7.5kw/11kw/15kw/18.5kw
travel of tooth bar:
On request
Supply Ability
Supply Ability:
100 Set/Sets per Month used diesel test bench
Packaging & Delivery
Packaging Details
standard export wooden packing
used diesel test bench
Port
qingdao or other any port
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 10 To be negotiated
Product Description

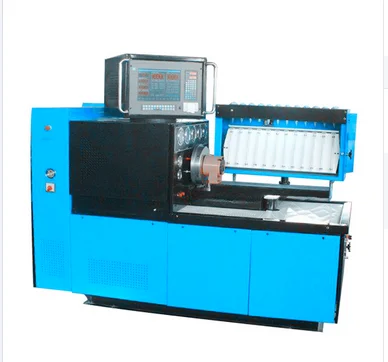

High quality BC3000 test bench with imported flow sensor

Introduction
BCS3000 diesel fuel injection pump test bench is a kind of fuel injection pump test bench adopt industrial pc with color CRT,
It's the newly researched production for the direction of high power and safety to the environment.
It has human- machine interface, digital controlling of rpm, temperature, pressure, diesel fuel pump technical parameter and so on, and in pace with print.
It easy and quick operates ,it's really human-machine dialog. This series test bench adopt high quality frequency conversing device and cast iron base supper size bed,
and its distinguishing features are hi-stable character, hi-reliability, ultra-low-noise, perfect auto-protecting function and so on, It is advanced products.
Main function
1. Measurement of each cylinder delivery at any speed
2. Test point and interval angle of oil supply of injection pump.
3. Checking and adjust the mechanical governor.
4. Checking and adjusting the distributor pump.
5. .Experiment and adjusting of behavior of supercharging and compensatory device.
6. Measurement of oil return of distributing pump
7. Testing of the electromagnetic valve of distributor pump.(12V/24V)
8. Measurement of the internal pressure of distributor pump.
9. Checking of the advance angle of advance device.(on request)
10. Checking the sealing of injection pump body
11. Install tube of auto-sucking oil supply can check on oil supply pump(including VE pump.)
12. Checking the travel of stroke
13.oil lubricate(on request)
14.Cast iron base(on request)
15. Foced cooller(on request)

Detailed Images


Packing & Delivery
Our Company

SHANDONG BEACON MACHINE MANUFACTURING CO.,LTD is the leading manufacturer specializing in producing the Diesel Fuel Injection System Tester in China,is avaiable for Traditional diesel fuel injection pump test bench,PT-CUMMIN pump and injectors Test stand,EDC(Electronic Diesel Controler ),CR(Common Rail pump Teser),
CRI(Common Rail Injectors Tester),Nozzle Tester,and many spares parts of Pumps.
The company's research and developmant capabilities are rich and the test measure is complete,and rewards the ISO9001-2000 certificate,CE certificate.
The company's product sale newwork has spread all over the world.The after-sales service of product has a system of its own,which can provide the best service for users timely.The company's aim is "honest and trustworthy operation and brazing new trails in science and technology"
